LET OP! De HBI serie 400 Economy is nog bestelbaar maar wordt uitgefaseerd. Onderdelen voor garantie-gevallen blijven wel leverbaar.
Als alternatief bieden wij u de HBI serie 550 All-in-One (IP40; IK08) en HBI serie 440 Fortem (IP65; IK10; SKG).
 |
| Light source: | 6W LED |
| Functionality | light sensor, low/high |
| Family | SERIES 400 ECONOMY |
| Application | General Lighting |
| Light source | 6W LED |
| Functionality | light sensor , low/high |
| LoRa node | no |
| Supply | 230V AC/DC |
| Color temperature (K) | 4000K |
| Luminous flux (lm) | 140 (L1) - 400 (L1+L2) |
| Ambient temperature (C) | -10 - +25 |
| Color housing | wit |
| Color rendering index (Ra) | >80 |
| Weight (gr) | 995 |

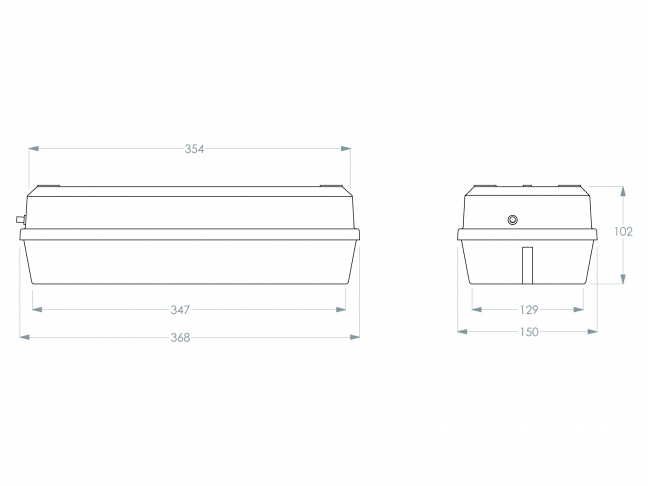

| Sizes of packaging (LxWxH) | 368 x 150 x 102 |
| Impact resistance | IK 08 |
| Power factor | 0.9 |
| Optics | prismatic diffusor |
| Autotest (ATS) | no |
| Motion sensor | no |
| Assembly | Surface mount |
| Material housing | ABS + policarbonate |
| Ingress protection | IP 65 |
| Power consumption | 2,2W (L1) - 6,3W (L1+L2) |
| Insulation class | Klasse I |
| Light sensor | yes |
| Details/particulars | designed for >100.000 hours |
| EAN | 8718309385590 |
114007
114008
400PE100 >> uitlopend
400PE25 >> uitlopend
400PE50 >> uitlopend
400PL >> uitlopend
400PLW >> uitlopend
400BK
| Handleiding | manual 400 Economy | Download |
| LDT file | Download |
| Product sheet | Download PDF |
Voordelen:
Kenmerken:
Toepassing:
